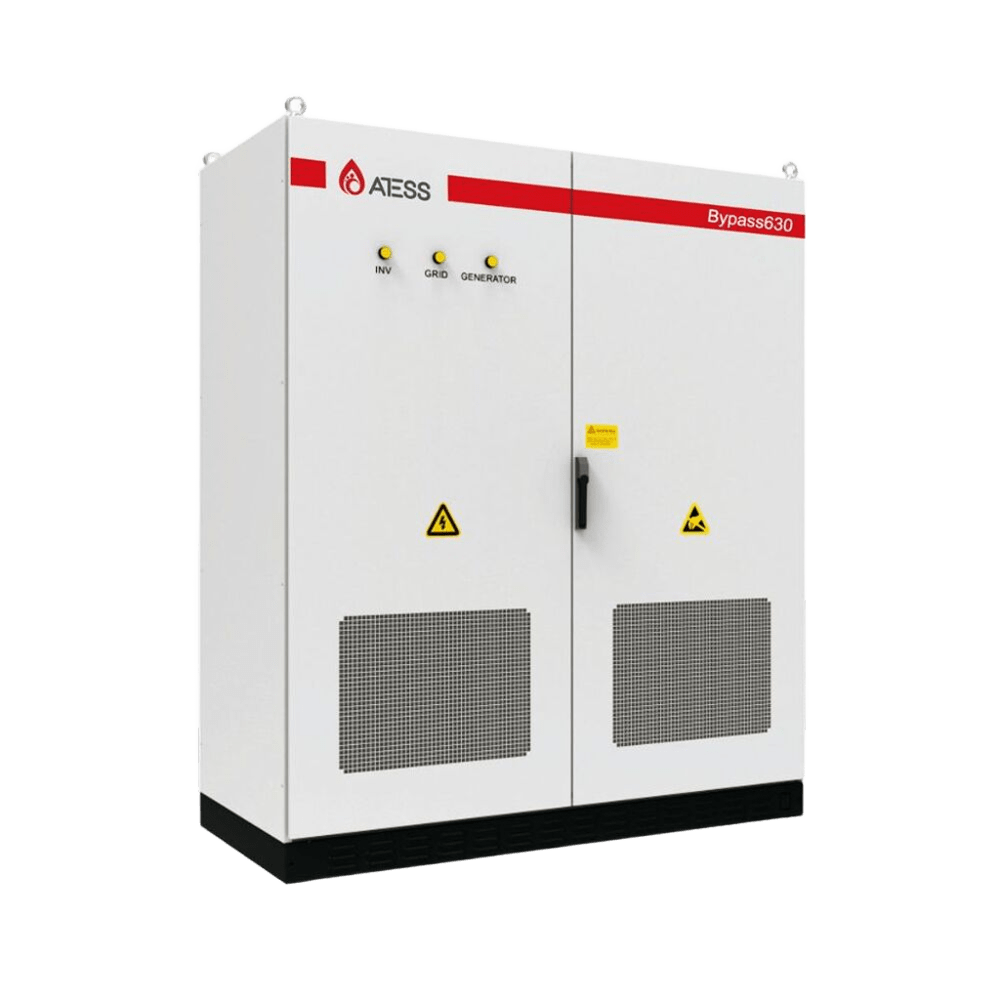

ATESS Bypass Cabinet – 630kW (Required with PCS630)

Brand: ATESS

Model: Bypass Cabinet – 630kW

Power Rating: 630kW

System Compatibility: Specifically designed for ATESS PCS630

Function:

• Enables bypass operation for inverter maintenance or service

• Provides continuous power to load during PCS isolation

• Supports both manual and automatic transfer modes

Voltage Rating: 400V AC (Three-Phase)

Frequency: 50 / 60Hz

Switching Components:

• High-capacity contactors or circuit breakers

• Interlocked bypass and maintenance switches

• Protective fuses or disconnects for load isolation

Protection & Safety:

• Overcurrent and short-circuit protection

• Arc flash and thermal protection

• Safety interlocks prevent parallel feed during service

• IP-rated enclosure for dust and moisture protection

Enclosure:

• Heavy-duty steel cabinet

• IP54 / IP55 rated for industrial environments

• Powder-coated finish for corrosion resistance

Cooling: Natural or forced-air cooling (depending on model)

Applications:

• Commercial and industrial ESS systems

• Hybrid power plants and grid-tied battery storage

• Data centers, factories, and renewable power stations

Key Benefits:

• Ensures continuous power delivery during inverter maintenance

• Protects PCS630 and load circuits from electrical faults

• Simplifies servicing and improves system uptime

• Factory-integrated with PCS630 for plug-and-play setup

• Built to ATESS safety and reliability standards
