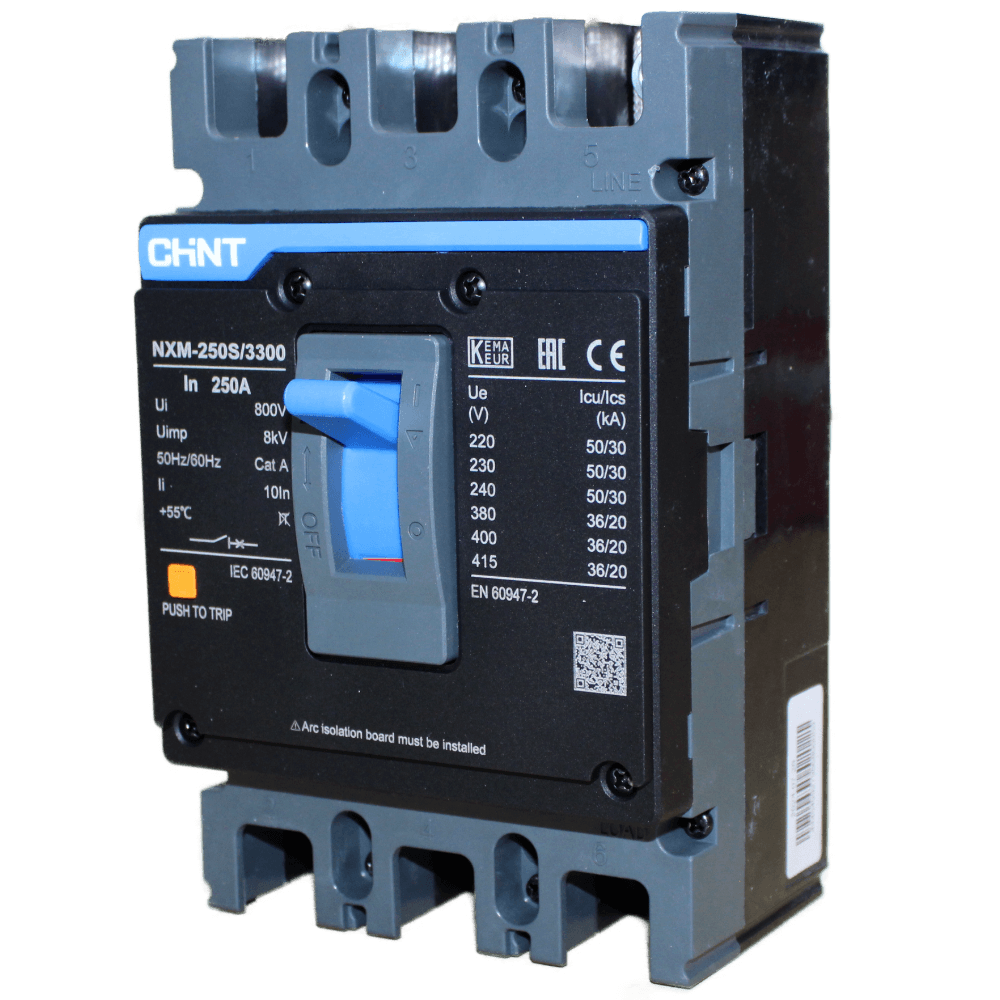

Chint NXM‑250S/3P‑160A 36 kA MCCB

Frame & Variants
Part of a broad-ranging series with frame sizes spanning from 63 A to 1,600 A, this model uses the 250 A frame class

Rated Current (In)
This variant is configured for 250 A, though alternative options (e.g., 160 A, 200 A) are available within the same frame

Breaking Capacity (Icu)
Designed with a 36 kA short-circuit interrupting capability, offering robust defense against severe fault currents

Operational Voltage (Ue)
Compatible across various industrial voltage levels—220–240 V, 380–415 V, 500 V, up to 690 VAC

Protection Functions
Ensures comprehensive safety by handling overload, short-circuit, and undervoltage events efficiently. It’s also optimized for motor circuits with infrequent starting patterns

Trip Mechanism Flexibility
Choose between thermal-magnetic fixed, magnetic-only fixed, or advanced electronic trip units (via the NXMS series) for tailored protection

Mounting Options
Available in fixed-mounted or plug-in modular configurations—offering versatile installation approaches
