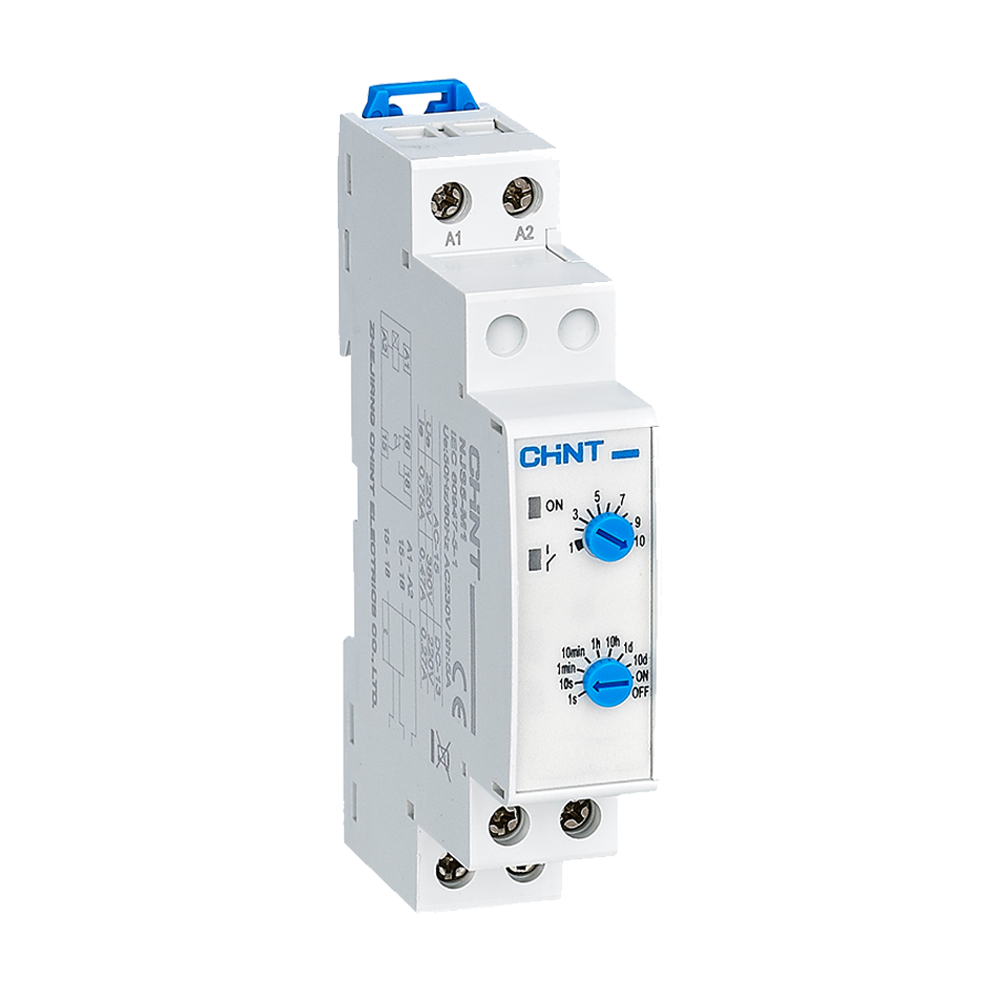

Chint Time Delay Relay 1 Sec – 10 Day AC230V

Function: ON-delay (power-on delay); additional configurations may be available in the NTE8 series

Timing Range: Adjustable from 1 s to 10 days, covering short and extended operations

Control Supply Voltage: AC 230 V (50/60 Hz)

Contact Output: 1 or 2 changeover contacts (depending on variant), rated for switching auxiliary/control circuits

Mounting: DIN-rail mountable, compact modular design suitable for control panels

Standards Compliance: IEC/EN 60947-5-1 for low-voltage control and signaling devices

Operation Indication: LED indicators for supply and timing status
