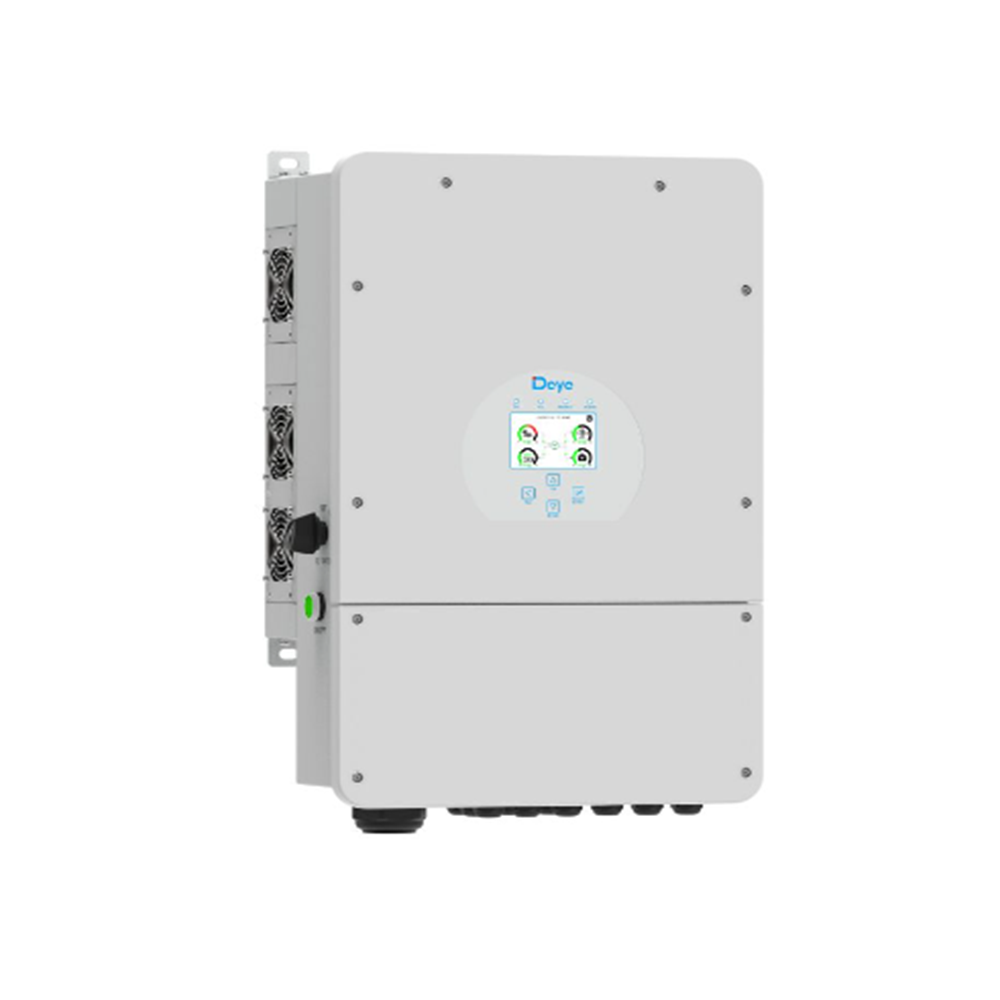

Deye 16 kW 48 V Single‑Phase Hybrid Inverter

DEYE-16.0

🔧 Key Features & Highlights

• Power rating: 16 000 W (16 kW) output in single phase (L + N + PE) configuration.

• Battery voltage range: Approx. 40-60 V DC for the 48 V battery bank.

• MPPT: 3 independent MPPT trackers, enabling flexible PV string configuration.

• PV input: Max DC input power up to ~20.8 kW for the model. MPPT voltage range around 150-425 V (250-500 V varies by region) and start‐up voltage around 125 V.

• Efficiency: Up to ~97.6% maximum efficiency; MPPT efficiency >99%.

• Ingress protection: IP65 rated — suitable for outdoor installation and exposed environments.

• Monitoring & connectivity: Includes WiFi dongle for remote monitoring, plus interfaces such as RS485 / CAN.

• Parallel support: Up to 16 units can be paralleled for larger systems (per manufacturer specs) for grid‐tie or off‐grid hybrid operation.

✅ Benefits for Installers / Users

• Enables large‐capacity hybrid solar + battery systems in one compact in-unit: simplifies installation and reduces system complexity.

• High PV input allows maximum harvesting of solar energy and good future‐proofing.

• 48 V battery compatibility makes it suitable for prevalent residential/SME battery systems.

• IP65 rating means you are not limited to indoor installation — can be placed in outdoor enclosures, garages or semi‐exposed areas.

• WiFi monitoring adds value via remote diagnostics, system overview and smart power management.

• High efficiency and multi‐MPPT architecture ensure strong system performance and ROI.
