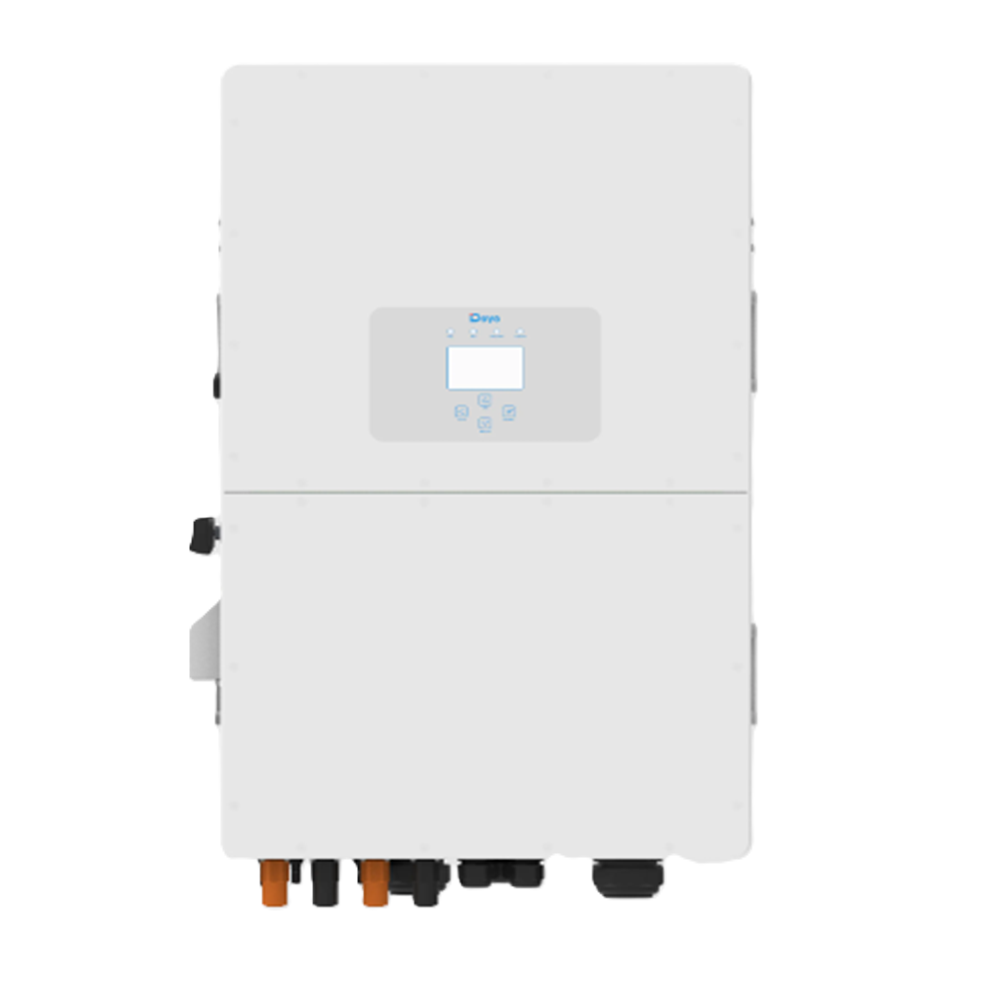

Deye 50 kW 3‑Phase Hybrid Inverter

DEYE-50KW-3PH-HV

🔧 Key Features

• 50 kW rated output power in 3-phase configuration (L+N+PE)

• High-voltage battery input support (160-800 VDC) — suitable for modern lithium battery banks.

• Maximum DC input power around ~65 000 W for PV arrays.

• MPPT voltage range up to ~150-850 V depending on variant and string configuration.

• Outdoor-rated (IP65) enclosure enabling installation in harsh or semi-outdoor environments.

• Smart monitoring and communication interfaces (RS485/CAN, optional WiFi/GPRS).

• Scalable and flexible: supports AC-couple/retrofit solar systems, multiple parallel units.

✅ Benefits

• Supports large-scale solar + storage applications with high power and high voltage flexibility.

• Allows fewer units installed to achieve large capacity, reducing hardware count and system complexity.

• High-voltage battery compatibility means lower current, smaller conductors and potentially cost savings.

• Outdoor-rated IP65 construction means it can be placed closer to PV field or in locations with minimal indoor space.

• Advanced monitoring and smart features enhance system performance tracking and maintenance.

• Hybrid design supports solar, battery storage, grid interaction and can retrofit existing systems or new builds.
