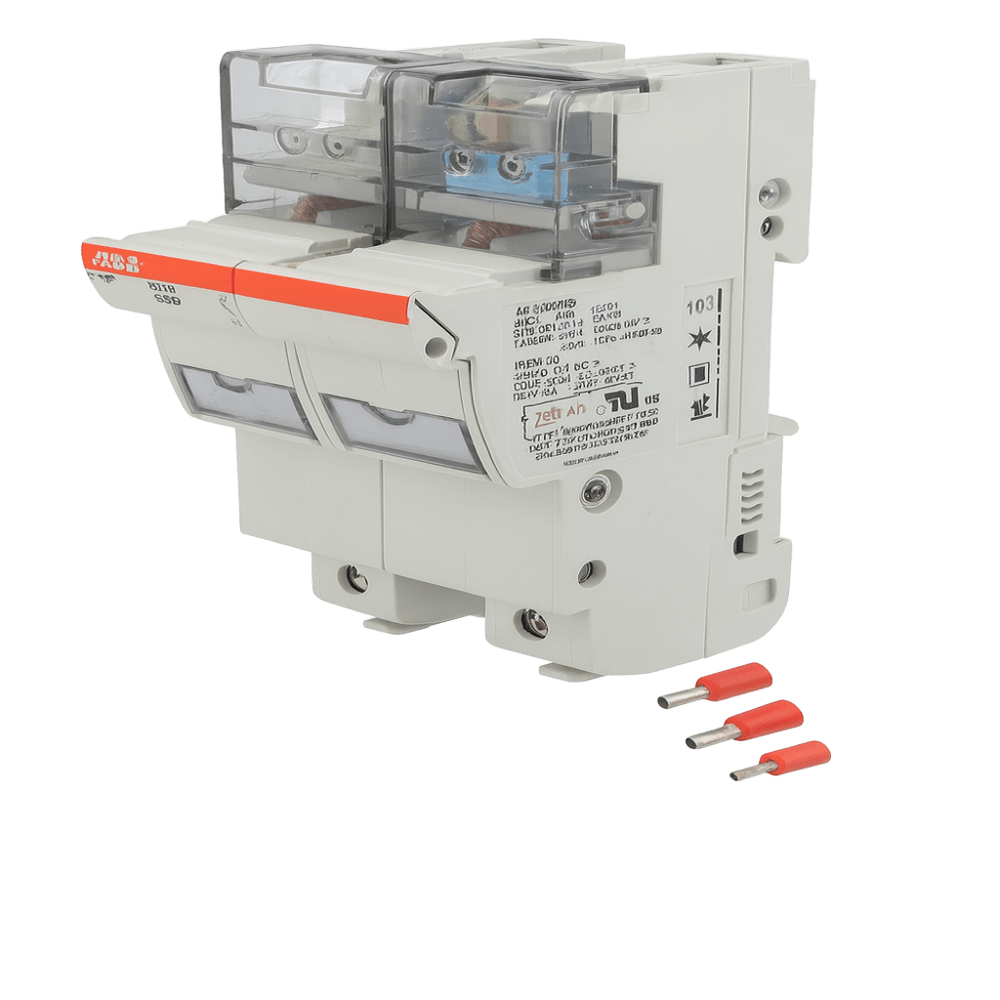

Fuse Holder – 1P+N, 50 A, 14×51 mm

Product Features:

• Optimized ventilation zones for improved heat dissipation

• Modular and compact design

• DIN rail mountable

• Hinged transparent label holder for easy and secure circuit identification

• High temperature resistance

• Self-extinguishing and halogen-free body

• Silver-plated copper contacts for enhanced conductivity

Technical Specifications:

• • Series: PMX

  • Rated Current: 50 A

  • Rated Voltage: 690 VAC

  • Number of Poles: 1 + N

  • Fuse Size: 14 × 51 mm

  • Mounting Type: DIN rail

  • Dimensions (mm): Height 110 mm × Depth 76 mm

  • Width: 3 modules (equivalent to 52.5 mm in standard 17.5 mm increments)
