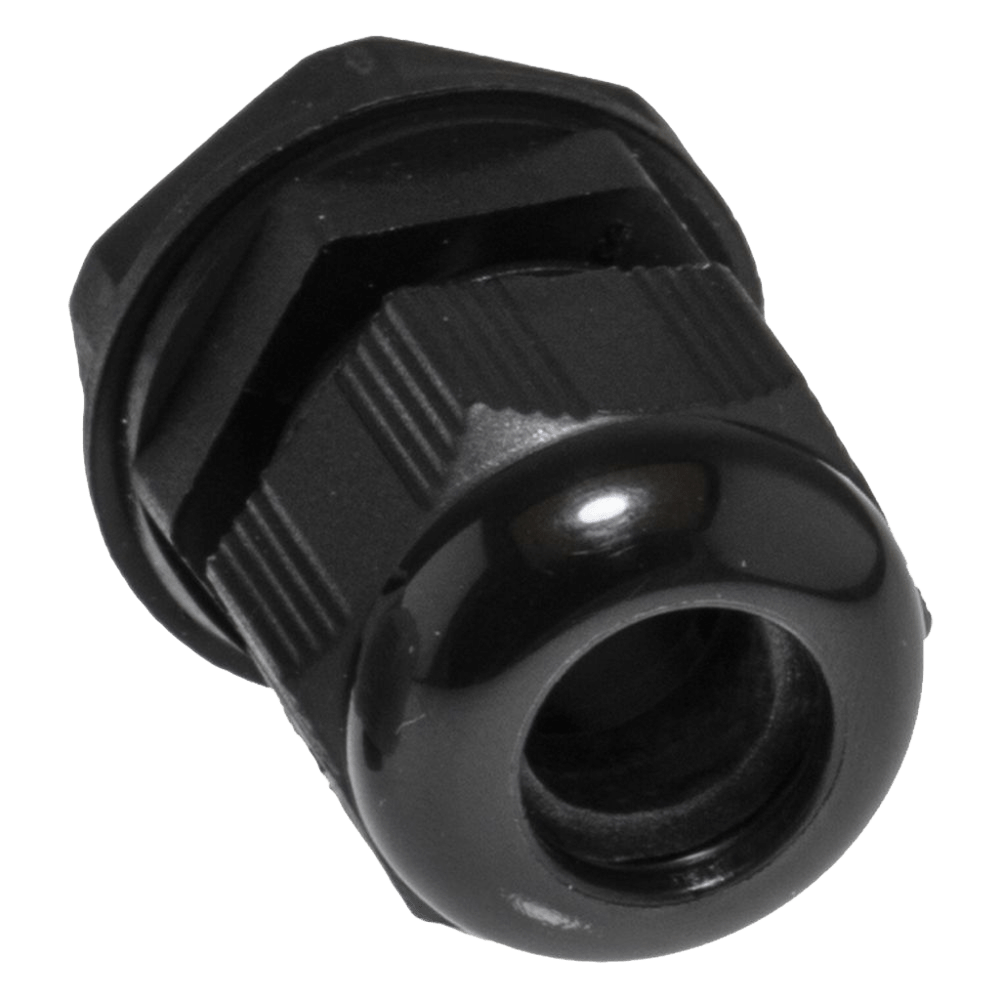

EM Gland Nylon 20 mm No 0 Black (IP68, Cable Ø9–14 mm)

Thread Size: M20 × 1.5 mm (standard metric thread)

Cable Diameter Compatibility: 9–14 mm outer diameter

Material: High-quality black polyamide (nylon PA66) — UV-resistant and flame-retardant

Ingress Protection: IP68, offering complete protection against dust ingress and prolonged water immersion

Included Components: EPDM or nitrile rubber sealing ring, washer, and locknut for secure, waterproof installation

Temperature Range: Typically rated from –40 °C to +100 °C, with enhanced resilience for short-term peaks

Installation Style: Screw-in compression gland providing mechanical retention and sealing in a single unit

Typical Dimensions & Ratings:

• Dome top with nylon compression cap

• Collar diameter approximately 27 mm; length 36–45 mm

• Tested for IP68 at 5 bar for 30 minutes, and often IP69 in washdown environments
