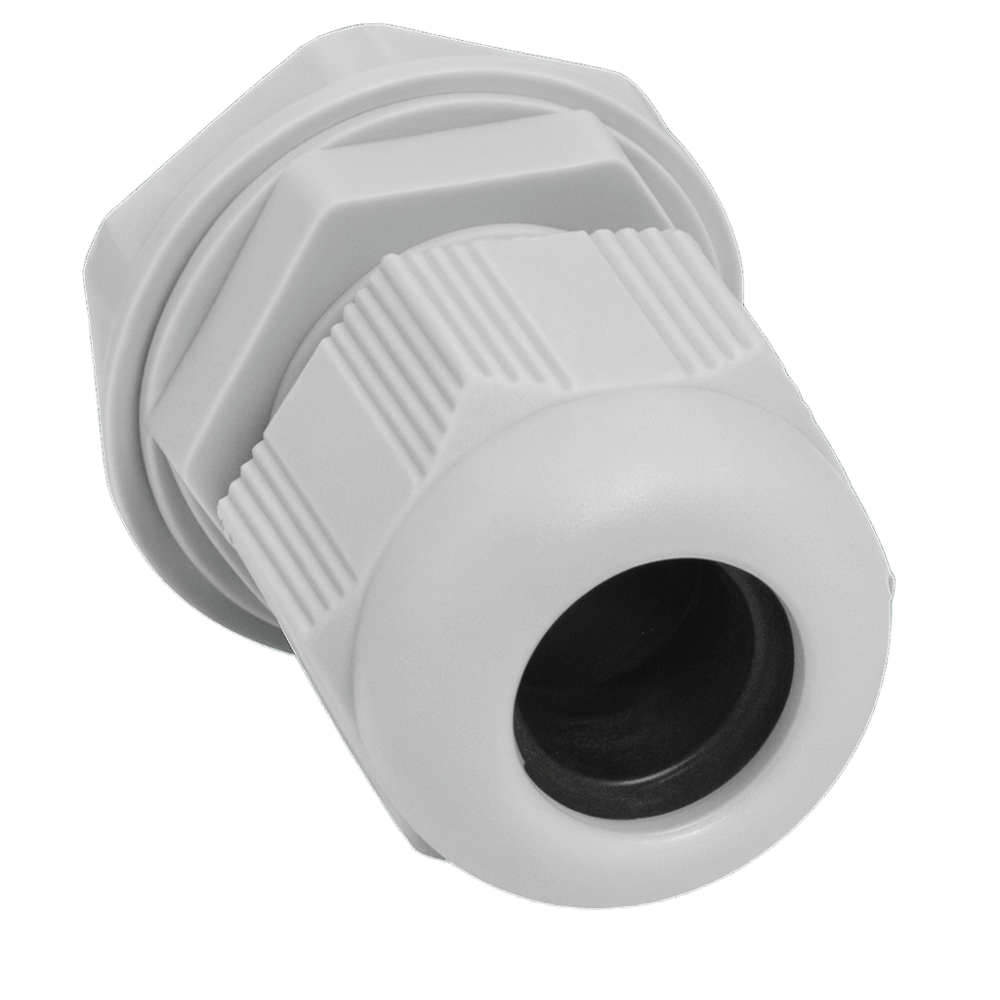

EM Gland Nylon 40 mm No 4 Grey (IP68, Cable Ø24–32 mm)

Thread Size: M40 (approx. 40 mm diameter), standard metric threading

Cable Diameter Range: Fits conductors with an outer diameter of 22–32 mm—commonly referred to as the No. 4 variant

Material: Durable nylon (PA6.6) with UV resistance and flame-retardant properties

Color: Neutral grey for industrial blending

Ingress Protection: Fully rated IP68, ensuring dust-tight and waterproof sealing—suitable for submerged or high-moisture environments

Accessories Included: Equipped with a rubber sealing ring (typically neoprene or EPDM) and locknut for secure, pressure-tight installation

Operating Conditions: Temperature rating generally spans –40 °C to +100 °C, meeting common outdoor and industrial use cases

Compliance: Meets IEC 698 (cable gland standards), often UL94V‑2 flammability class
