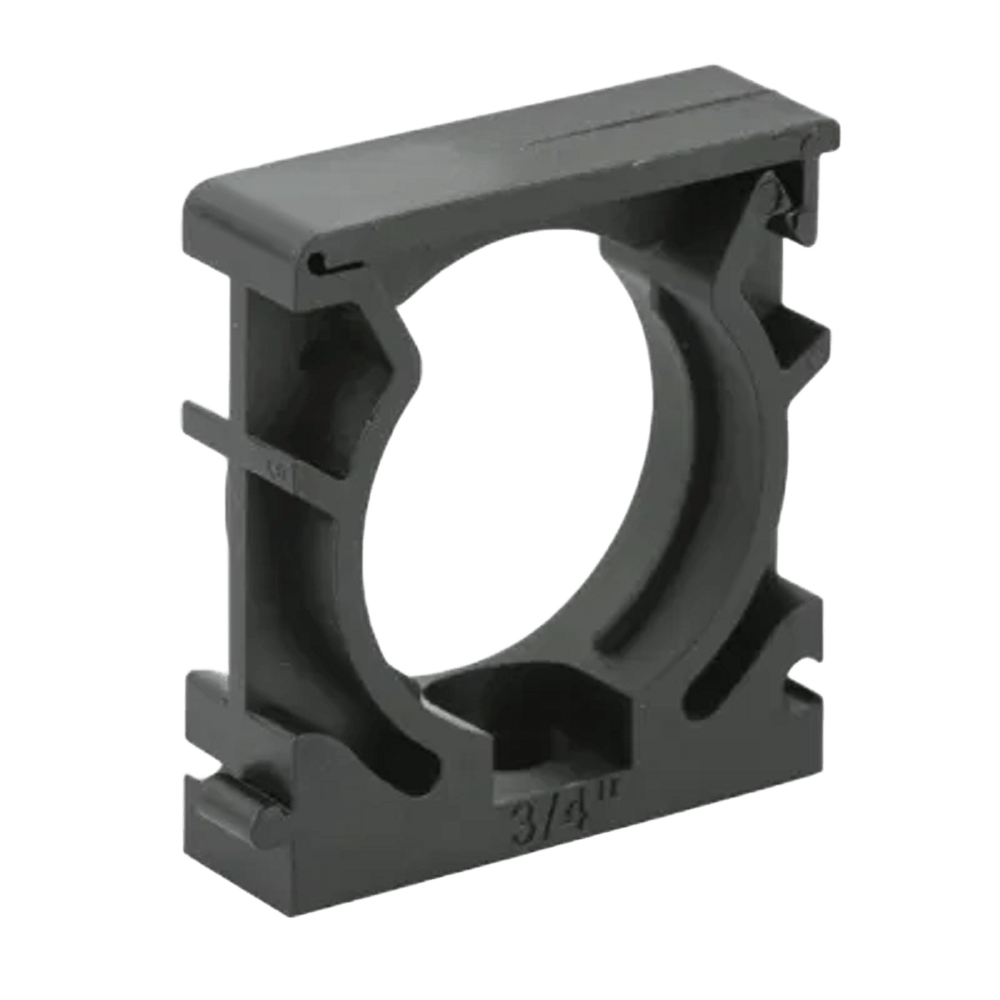

EM Nylon (Plastic) Support Bracket For AD21.2 Conduit

Product Type: Conduit Support Bracket / Mounting Clip

Compatible Conduit Size: AD21.2 (≈ 21.2 mm outer diameter)

Material: Polyamide (Nylon PA6), halogen-free, flame-retardant

Colour: Black (standard)

Mounting Hole Size: ~6.5 mm (for screws, bolts, or rivets)

Approx. Dimensions:

• Height: ~35 mm

• Width: ~30 mm

• Clip thickness: ~15 mm

Temperature Range: –40 °C to +110 °C (short-term peaks up to +120 °C)

Flammability Rating: UL94 V-2 (self-extinguishing)

Resistance: Excellent resistance to vibration, oils, fuels, weak acids, and solvents

Mounting Method: Snap-in locking buckle for quick, secure fitting
