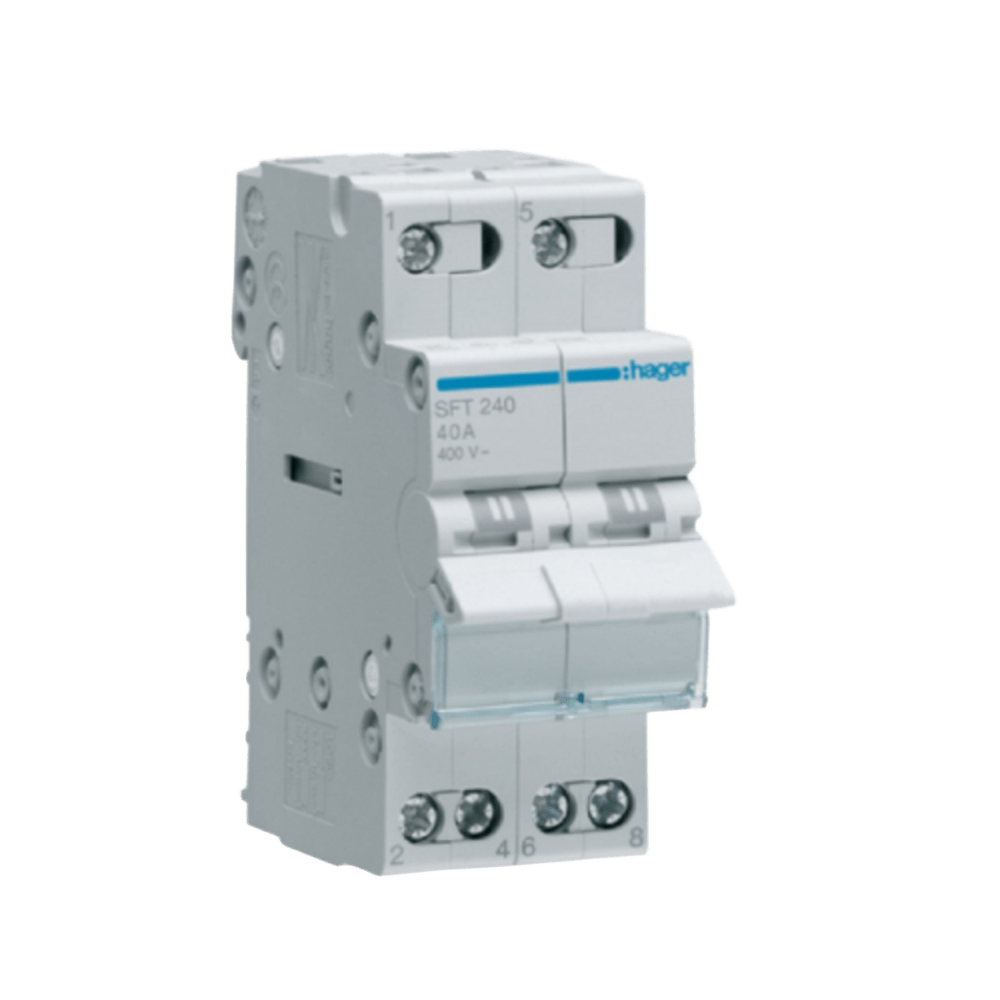

Hager Changeover Switch – 40A, 2 Pole, DIN Mount, Centre Off

Current Rating: 40 A AC (AC21 & AC22 categories A/B)

Switch Configuration: 2‑pole (no neutral switching), centre‑off manual lever

Rated Voltage: 230 VAC (Ue); Insulation voltage Ui up to 440 VAC; Impulse withstand Uimp ≈ 4 kV

Short-Circuit Capability:

• Icm (making): ~0.48 kA

• Icw (1-second withstand): ~0.60 kA with gL‑gG fuses around 0.60 kA

Connection Terminals: Screw type; live conductor up to 16 mm² rigid or 10 mm² flexible; torque ~1.8 Nm

Form Factor: 2 DIN modules wide (~35 mm width, 83 mm height, 70 mm depth)

Mounting: 35 mm DIN rail (EN 60715), top common terminal alignment
