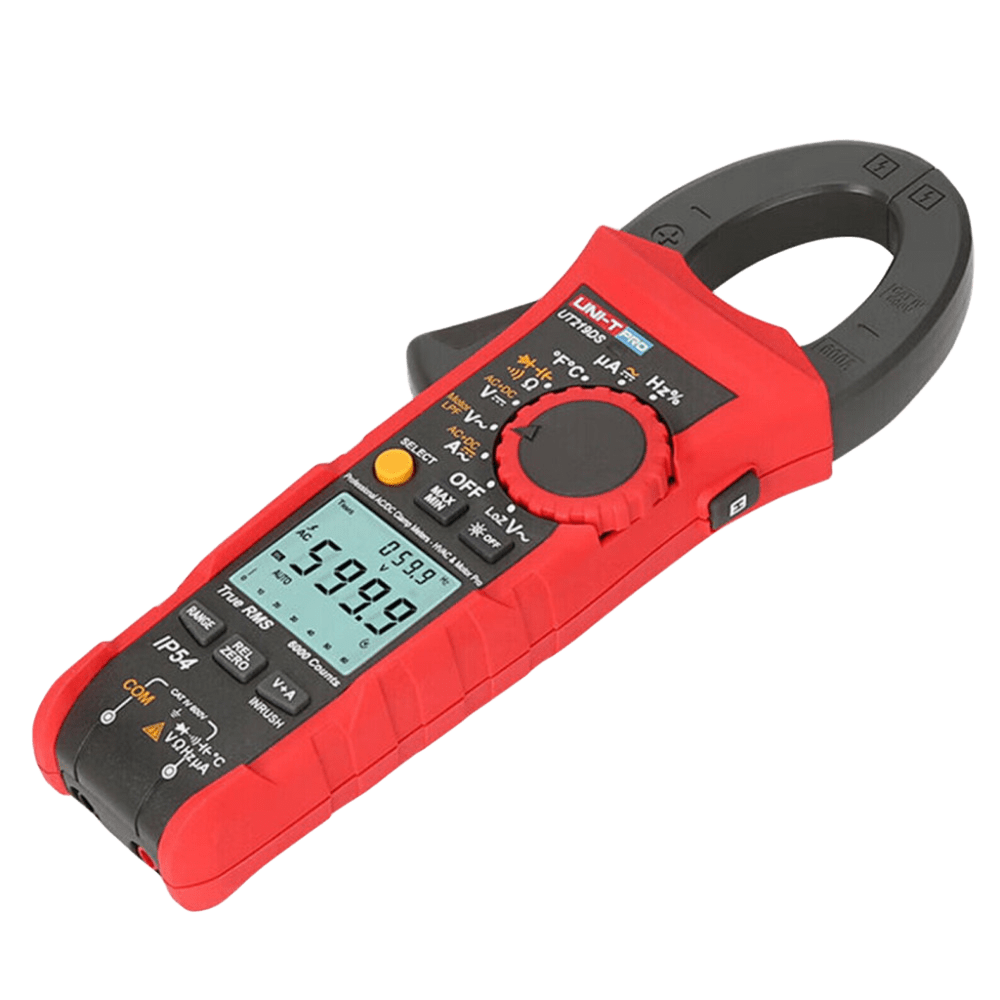

UNI-T 600A True RMS Digital Clamp Meter AC/DC PRO

• AC: 60A to 600A, True RMS, ±(1.8% + 6)

• DC: 60A to 600A, ±(1.8% + 6)

• μA Range: 0–2000μA for flame sensors and small load circuits

Voltage Measurement:

• AC: Up to 750V ±(1.0% + 6)

• DC: Up to 1000V ±(0.6% + 3)

• LoZ Voltage Mode: For ghost voltage detection (up to 600V)

Resistance: Up to 60MΩ

Capacitance: Up to 60mF

Frequency: 10Hz to 10MHz

Duty Cycle: 0.1% to 99.9%

Temperature: –40°C to 1000°C with K-type thermocouple

Display:

• 6000-count dual backlit LCD

• Dual display: View voltage and current simultaneously

• Fast sampling: 5 readings/sec numeric, 20 readings/sec bar graph

Additional Functions:

• Diode test and continuity buzzer

• Data hold, MAX/MIN, relative mode (REL/ZERO)

• Non-contact voltage detection (NCV)

• Flashlight for working in dark environments

• Auto power-off and low battery indication

• Low-pass filter for accurate VFD and motor measurements

• Motor phase sequence testing
