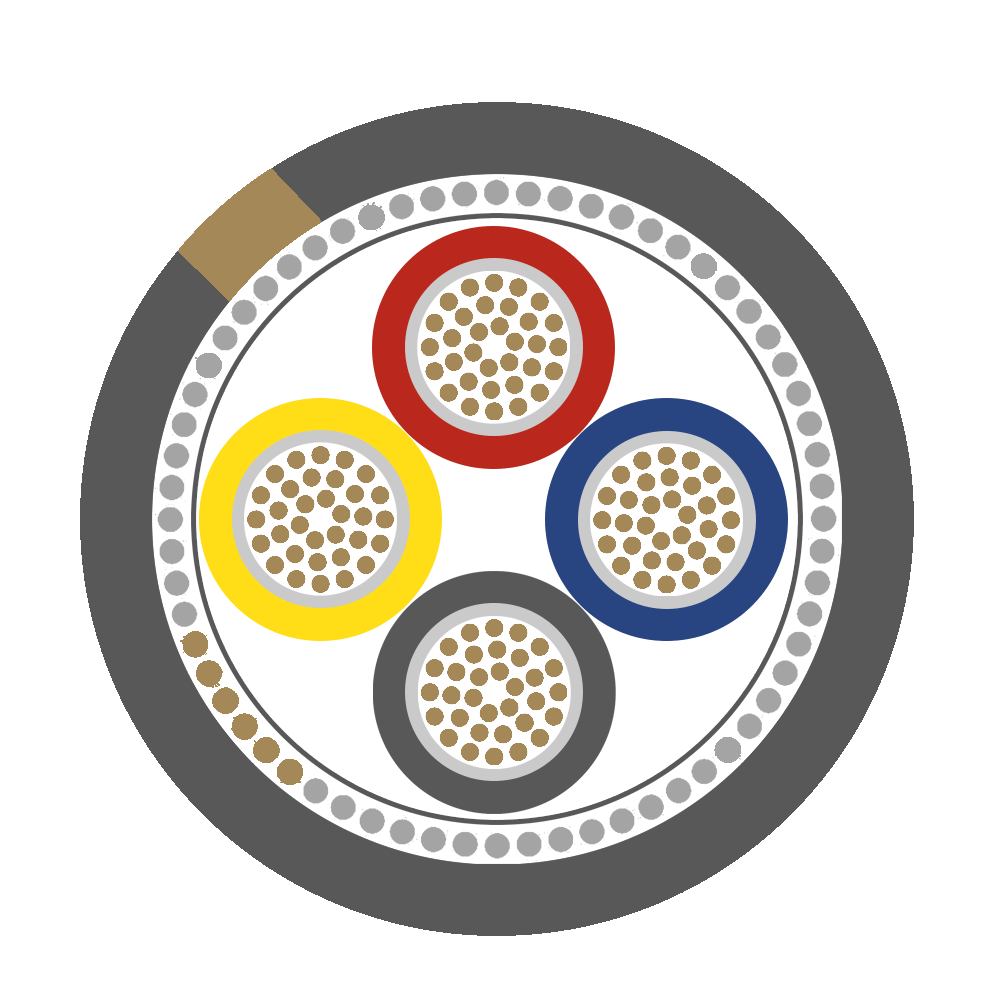

PVC/SWA/PVC ECC 25mm² x 4C Copper Cable – 600/1000V Red/Brown Stripe (119A)

Conductors: Class 2 stranded copper, 25 mm² per core for efficient current carrying. This specification is important for 25mm² 4 Core Copper Armoured Cable 600/1000V applications, ensuring reliable performance.

Core Identification: Standard LV colour coding with red/brown stripe for clear phase identification.

Insulation: PVC insulation for stable dielectric properties and durability.

Bedding: PVC bedding cushions and protects the insulated conductors under the armour.

Armour: Galvanised Steel Wire Armour (SWA) for robust mechanical protection and earth bonding.

ECC: Integrated Earth Continuity Conductor for a built‑in, reliable earth path.

Outer Sheath: Heavy‑duty black PVC, UV‑stabilised and moisture‑resistant.
