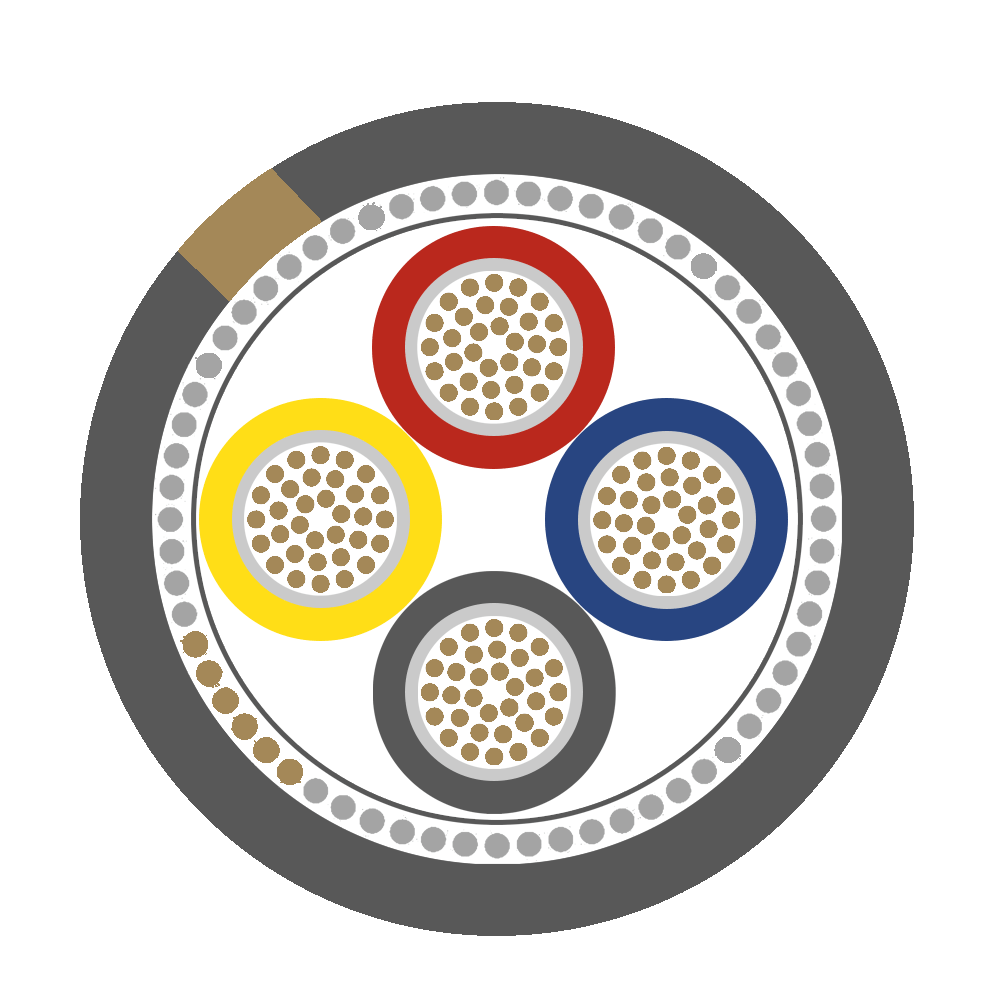

PVC/SWA/PVC ECC 95mm² x 4C Cu 600/1000V Red/Brown Stripe (251A)

Conductors: Class 2 stranded copper, 95 mm² per core – excellent conductivity and flexibility.

Core Identification: Standard low‑voltage colours with red/brown stripe marking for phase identification.

Insulation: PVC (Polyvinyl Chloride) – provides electrical insulation and thermal stability.

Bedding: PVC bedding over cores to cushion and protect under armour.

Armour: Galvanised steel wire armour (SWA) – provides mechanical protection and acts as an earth return path (with ECC).

Sheath: Outer PVC sheath – tough, weather‑resistant, UV‑stabilised black jacket for indoor or outdoor use.

ECC: Integral earth continuity conductor (usually green/yellow) for enhanced safety.
