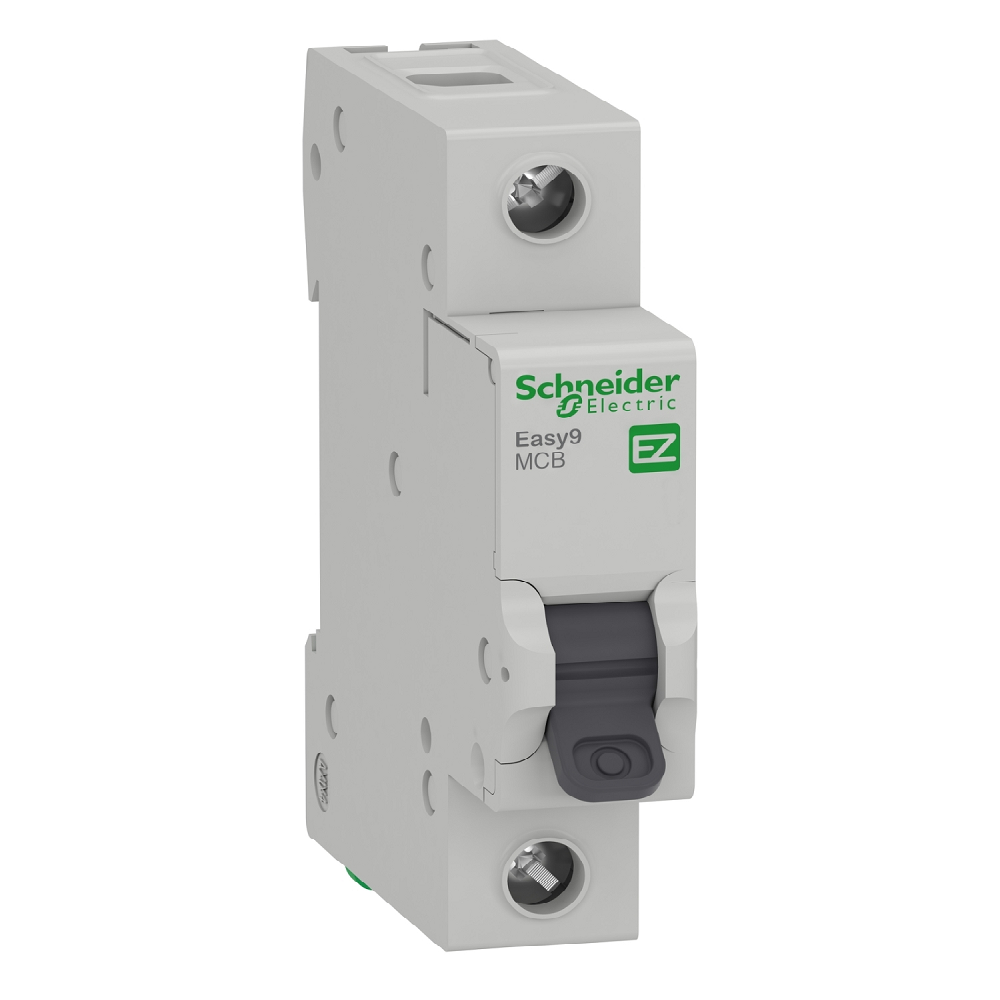

Schneider Easy9 MCB 1P 63 A C 3 kA 230 V

Overload and short-circuit protection — Thermal and magnetic trip elements protect circuits from excessive current.

C-curve tripping characteristic — Ideal for general-purpose applications such as lighting, sockets, and small motor loads.

Single-pole (1P) design — Provides protection for one live conductor in single-phase systems.

Rated current: 63A — Suitable for higher load circuits in residential and commercial applications.

Rated voltage: 230V AC — Designed for standard single-phase operation.

Breaking capacity: 3kA — Offers reliable protection against short-circuit faults up to 3,000A.

High endurance — 10,000 mechanical operations and 4,000 electrical switching cycles ensure long service life.

Compact modular size — 18mm DIN-rail mount for easy installation in distribution boards.

Clear ON/OFF indication — Front toggle shows breaker position and trip status.

Top and bottom wiring terminals — Accepts both rigid and flexible conductors with secure tunnel-type terminals.

IP20 protection rating — Prevents accidental contact with live parts when installed.

Wide operating temperature range — Performs reliably from –25°C to +60°C.

Complies with IEC and SANS standards — Ensures safety and quality for South African installations.
