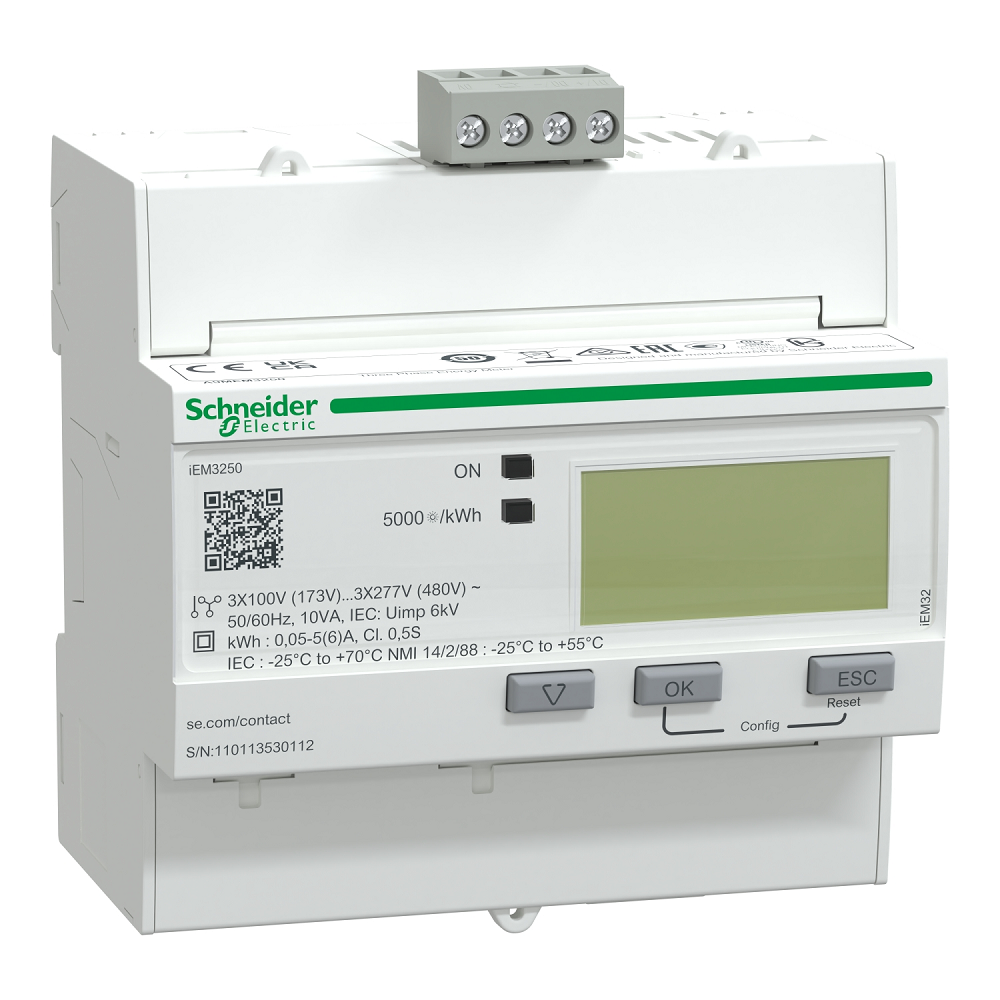

Schneider 3PH+N kWh Meter – 1A/5A CT Operated, DIN-Rail

Brand: Schneider Electric

Type: kWh Energy Meter

System Type: Three-Phase + Neutral (3PH+N), 3- or 4-wire

Connection: CT-operated (1A/5A secondary)

Current Rating: Dependent on CT ratio (primary rating up to several hundred amps)

Mounting: DIN-rail modular design

Display: Backlit digital LCD

Measured Parameters:

• Active energy (kWh)

• Voltage (V), Current (A), Frequency (Hz)

• Active Power (kW), Power Factor (PF)

Standards Compliance: IEC/EN 62052-11, IEC/EN 62053-21

Voltage Range: 3 × 230/400V AC

Frequency: 50/60Hz

Optional Outputs: Pulse output and/or RS-485 Modbus RTU communication
