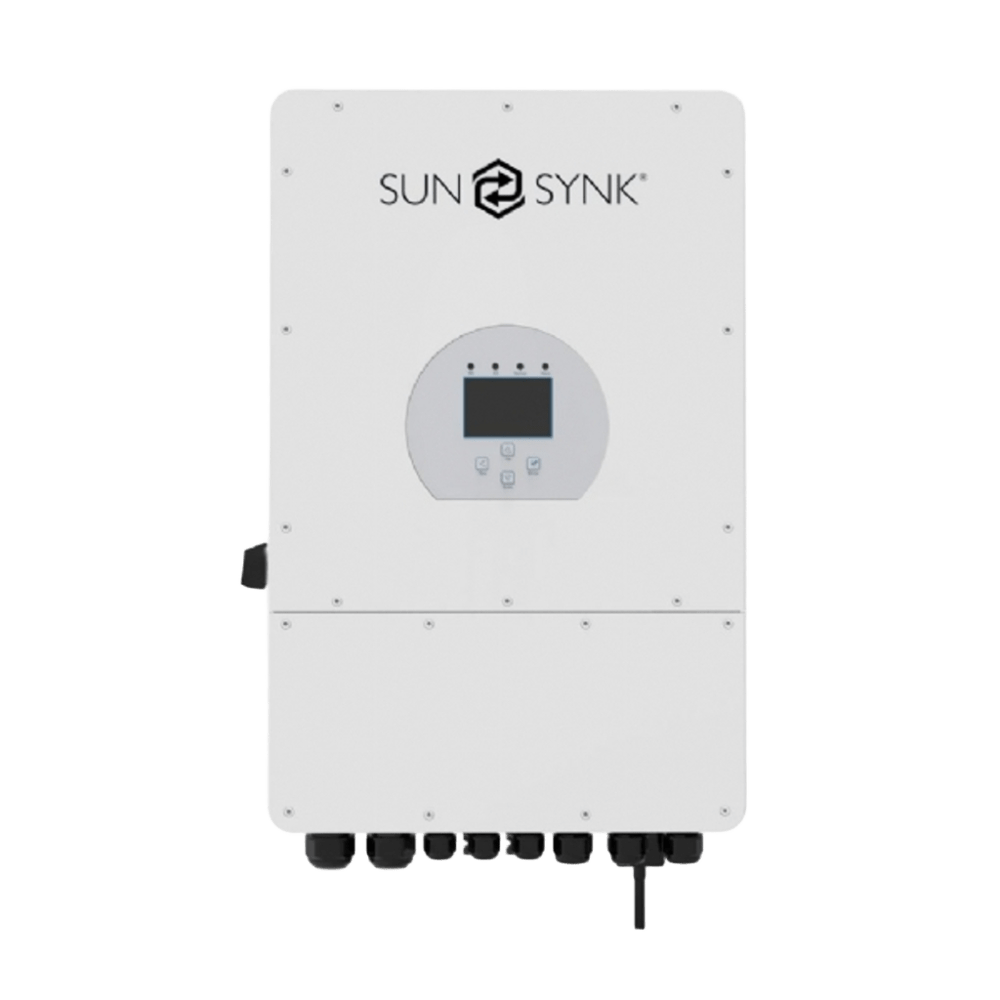

Sunsynk Hybrid Inverter 10kW 1P 48VDC-230VAC with WiFi Dongle and 3 MPPT (32kg)

Compact Wall‑Mounted Enclosure:
Heavy‑duty steel body with a corrosion‑resistant coating, designed for long service life. Slim profile and integrated brackets allow easy installation in homes or commercial switch rooms.

IP65 Protection Rating:
Fully sealed against dust and resistant to water jets, making it suitable for indoor or semi‑outdoor sheltered environments.

Integrated LCD Control Panel:
A front‑mounted high‑contrast LCD screen with tactile buttons provides local configuration, real‑time monitoring, and fault status indicators.

Multiple Cable Entry Points:
Designed with clearly marked PV, battery, grid, and load terminals, with accessible gland entries to simplify cable management and maintain a neat finish.

Three Independent MPPT Trackers:
Internally designed with three high‑efficiency Maximum Power Point Tracking inputs, allowing multiple PV string configurations for optimal solar harvesting.

Efficient Cooling System:
Built‑in intelligent cooling with temperature‑controlled fans and heat‑sink fins to ensure stable operation under high loads.

Plug‑and‑Play Wi‑Fi Dongle:
A pre‑installed, easily replaceable Wi‑Fi module housed internally with antenna provision, enabling app‑based monitoring and firmware updates.

Robust Internal Architecture:
High‑current copper busbars, premium IGBT modules, and reinforced PCB design for handling up to 10 kW continuous power and 220 A battery currents.

Weight & Dimensions:
Approx. 32 kg, dimensions around 670 mm (H) × 420 mm (W) × 233 mm (D), ensuring a compact footprint for a 10 kW inverter.
