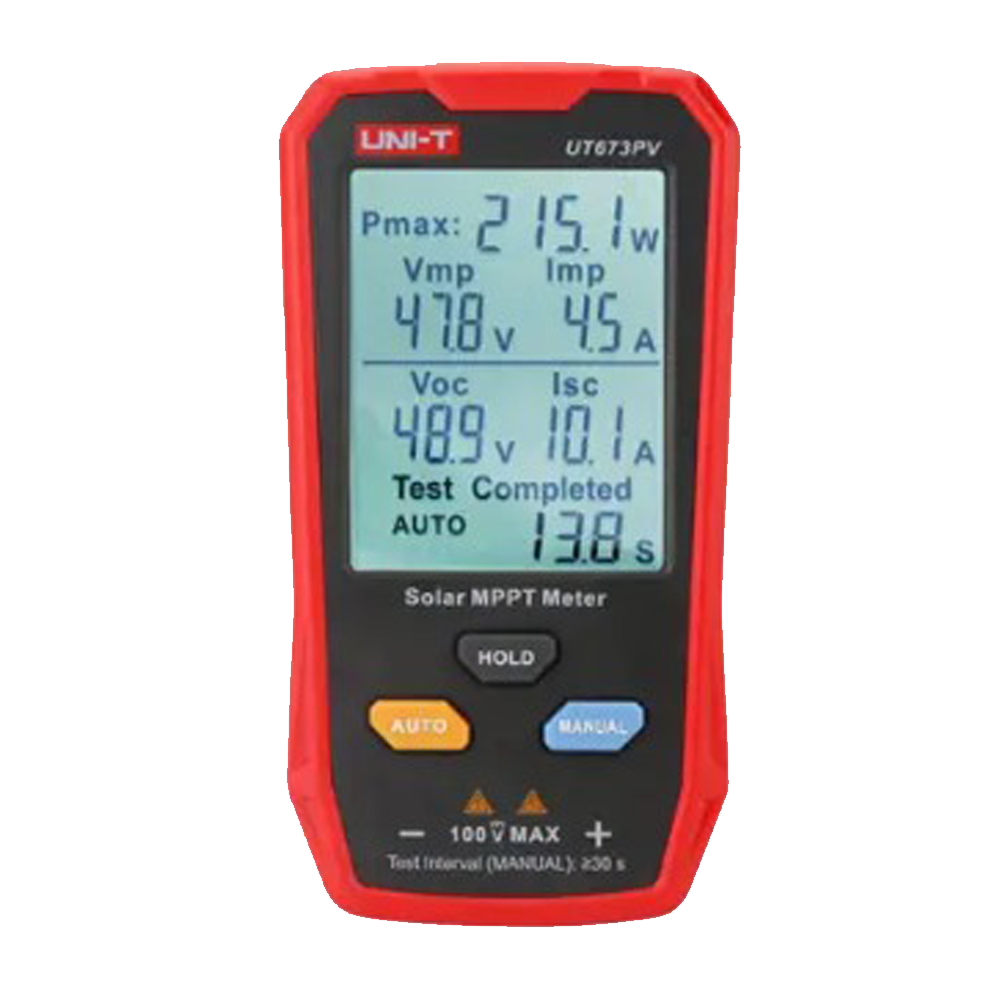

UNI-T Solar MPPT Meter

• Measures Five Key Solar Parameters:

  • Pmax (Maximum Power): 5W to 800W

  • Vmp (Voltage at Max Power): 12V to 60V

  • Imp (Current at Max Power): 0A to 35A

  • Voc (Open Circuit Voltage): 12V to 60V

  • Isc (Short Circuit Current): 0A to 35A

• High Accuracy: ±1.0% to ±1.5%, ensuring reliable data for solar performance evaluation

• Auto/Manual Modes: Switch between automatic scanning or manual hold for detailed analysis

• Data Hold Function: Allows users to freeze measurements for easy recording and inspection

Display & Operation:

• Large Full-Color LCD Display (52 × 66mm): Simultaneously shows voltage, current, and power readings

• User-Friendly Interface: Single-button operation with intuitive menu layout

• No Batteries Required: Powered directly from the solar panel under test, making it always ready for use

• MC4 Test Leads Included: Compatible with most commercial and residential solar panels

Safety & Protection:

• Built-In Protections:

  • Reverse polarity protection

  • Over-voltage protection

  • Over-current protection

  • Over-temperature protection

  • Over-power protection

• Safe Testing: Rated for safe operation up to 60V with CAT 0 protection category
