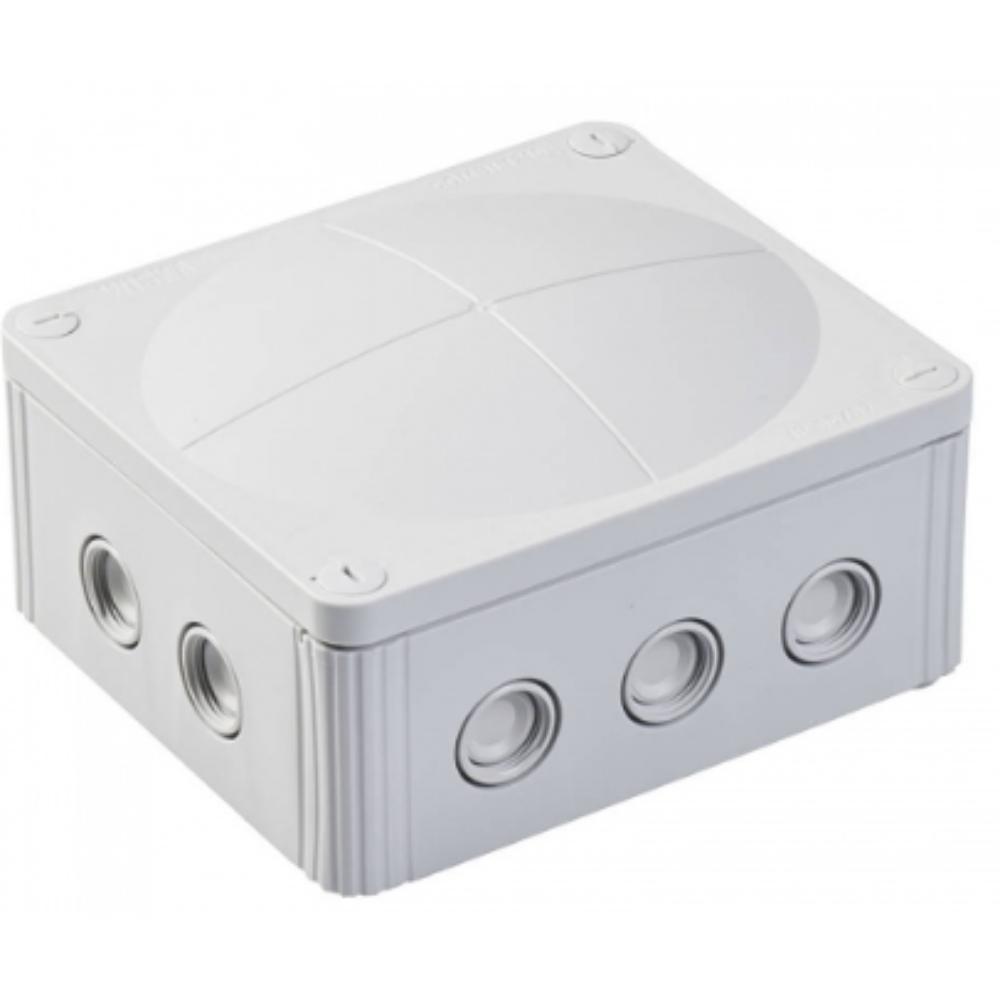

WISKA COMBI 1210 PVC Enclosure – 160×140×81 mm, Grey, IP 66/67

A robust and versatile enclosure designed for demanding indoor or outdoor electrical applications.

Key Features:

• Sturdy polypropylene (PP) construction with a thermo-elastic seal offers excellent durability and chemical resistance.

• Rated IP66/IP67, providing full protection against dust, jet sprays, and temporary submersion when using membrane or threaded cable entries.

• External dims: 160 mm × 140 mm × 81 mm – compact yet spacious enough for junctions and small terminal blocks.

• Operating range: −30 °C to +100 °C (nominal), installed between −5 °C and +60 °C.

• Glow-wire tested to 750 °C, meeting safety standards for fire resistance.

• Includes 10 M20 thread/membrane entries and M25 knock-outs for flexible cable routing; also features four captive ¼-turn lid screws for tool-free opening.

• Integrated mounting: Internal bosses facilitate the attachment of DIN rails, terminal blocks, or mounting plates (sold separately).

• Belled cover design adds approximately 10% extra internal space—ideal for neat cable management.

• Voltage rating up to 690 V, supports conductors up to 10 mm²—ideal for many low-voltage installations .

• Grey finish, blending well in commercial and industrial environments
