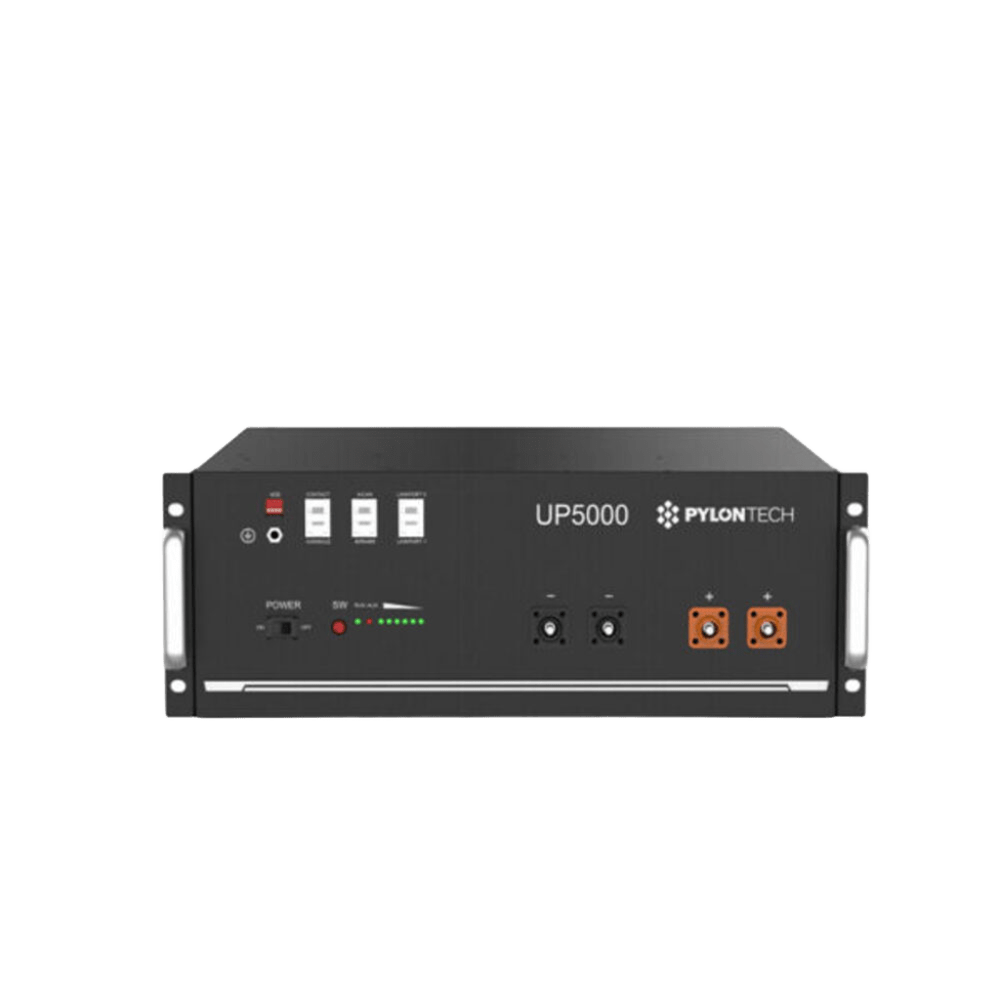

Pylontech 48V 100AH Lithium Battery LiFePO4 4.8KWH

Nominal Voltage: The Pylontech 48V 100Ah LiFePO4 Battery offers a nominal voltage of 48V (compatible with 48V inverters).

Capacity: 100Ah

Energy Storage: 4.8kWh (4.56kWh usable @ 95% DoD)

Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)

Cycle Life: ≥6000 cycles at 90% DoD (up to 10+ years life expectancy)

Discharge Rate: 0.9C (continuous)

Peak Discharge Current: Up to 100A for short durations

Efficiency: >95% round-trip efficiency

Battery Management System (BMS): Built-in intelligent BMS with cell balancing and protection

Parallel Capability: Up to 16 units in parallel (expandable to 76.8kWh without additional hub)
