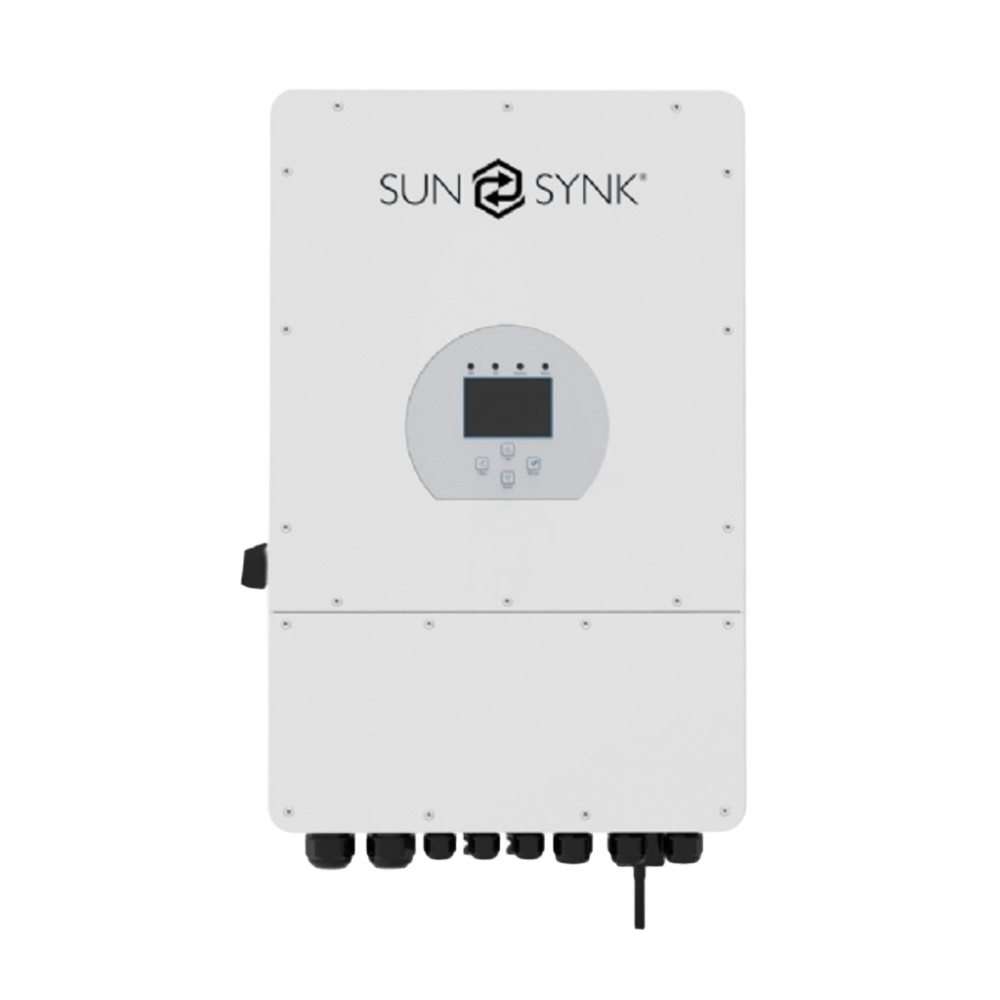

Sunsynk Hybrid Inverter 12kW 1P 48VDC-230VAC + WiFi Dongle, 3xMPPT (32kg)

Robust Enclosure:
Heavy‑duty powder‑coated metal housing with an IP65 rating for dust‑tight and water‑resistant performance. Suitable for indoor or sheltered outdoor wall mounting.

Compact Dimensions:
Approx. 670 mm (H) × 420 mm (W) × 233 mm (D) with a weight of ≈32 kg, allowing installation in tight spaces while maintaining excellent heat dissipation.

Efficient Cooling:
Integrated heat sinks and temperature‑controlled low‑noise fans ensure optimal operating temperatures under high load, extending service life.

User Interface:
A front‑mounted high‑contrast LCD display with physical buttons for on‑site setup, configuration, and real‑time monitoring.

Cable Management:
Clearly marked input and output terminals with multiple gland entry points for PV strings, battery connections, grid supply, and load output, simplifying installation and ensuring tidy wiring.

MPPT Architecture:
Equipped with 3 independent MPPT trackers for flexible solar array designs and improved efficiency. Each tracker is rated to handle high current input, enabling mixed‑orientation panel strings.

Connectivity:
Supplied with a plug‑and‑play Wi‑Fi dongle for remote monitoring, firmware updates, and data logging through the Sunsynk mobile or web platforms.

Internal Build Quality:
Reinforced copper busbars, high‑spec IGBTs, and surge‑protected PCBs designed to handle 12 kW continuous output and high charge/discharge currents from 48 V battery banks.
