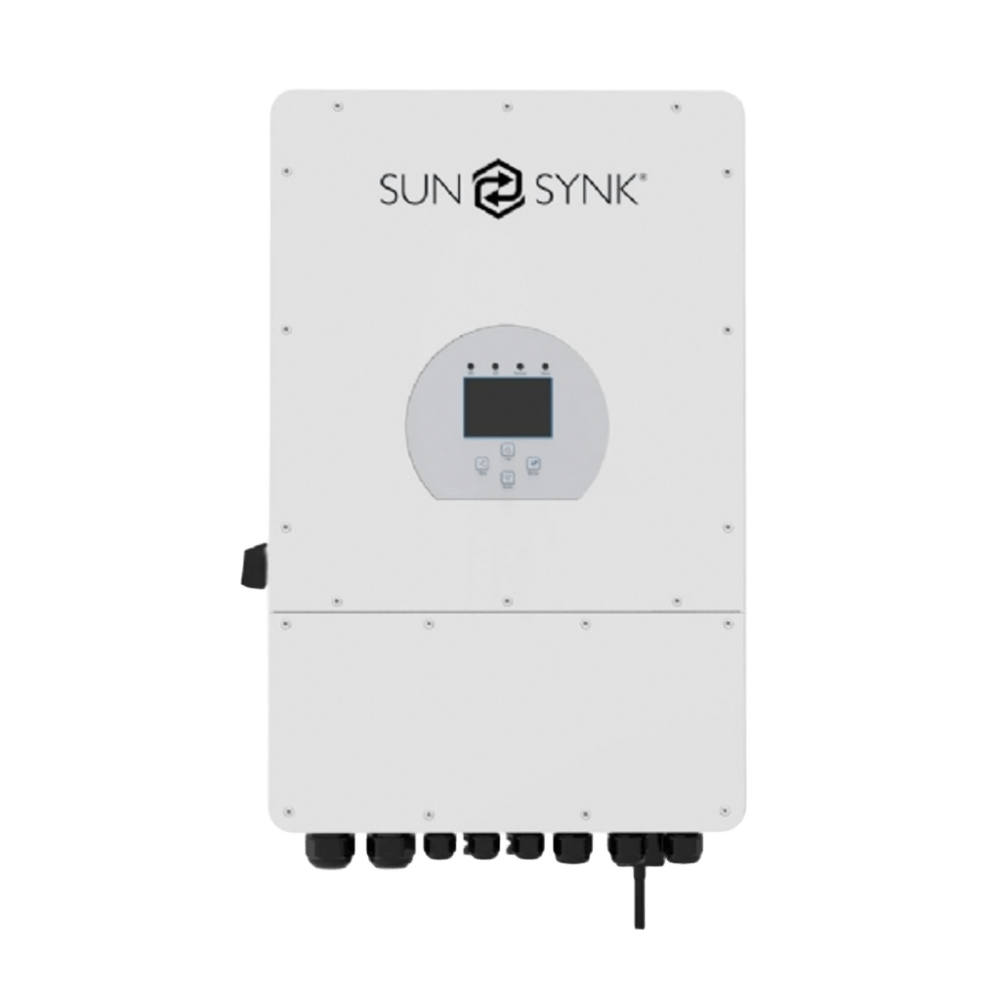

Sunsynk 5kW 48VDC Hybrid Inverter with WiFi Dongle – Dual MPPT

5 kW Rated Output
Single‑phase hybrid inverter delivering 5 kW continuous AC power with surge capacity for demanding loads.

Dual MPPT Solar Inputs
Two independent Maximum Power Point Trackers allow multiple PV strings or different roof orientations, ensuring maximum solar harvesting.

Wide PV Input Range
Supports a broad DC input voltage window (approx. 125 V–425 V), making system design flexible and efficient.

48 V Battery Integration
Compatible with 48 V LiFePO₄ or lead‑acid batteries, offering high charge/discharge currents for fast energy storage and release.

IP65 Enclosure
Weather‑resistant, dust‑tight, and suitable for indoor or sheltered outdoor installations.

Built‑in Wi‑Fi Dongle
Remote monitoring, data logging, and firmware updates via the Sunsynk monitoring app or web portal.

Hybrid Operation
Supports on‑grid, off‑grid, and UPS modes, with fast switchover (<10 ms) for uninterrupted power supply.

Parallel Ready
Up to 16 units can be paralleled, allowing system scalability for larger installations.

High Efficiency
Maximum efficiency of around 97.5%, ensuring minimal energy loss.

Comprehensive Protection
Includes anti‑islanding, surge protection, over‑temperature, over‑current, and over‑voltage safeguards.
